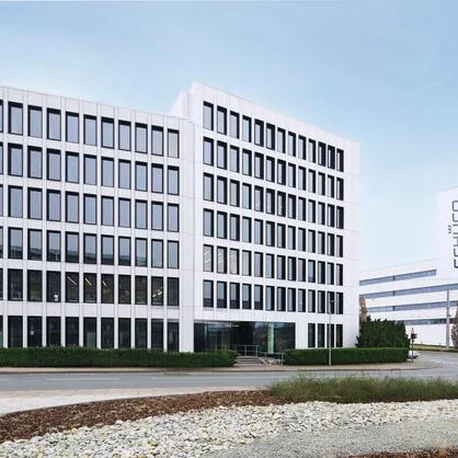

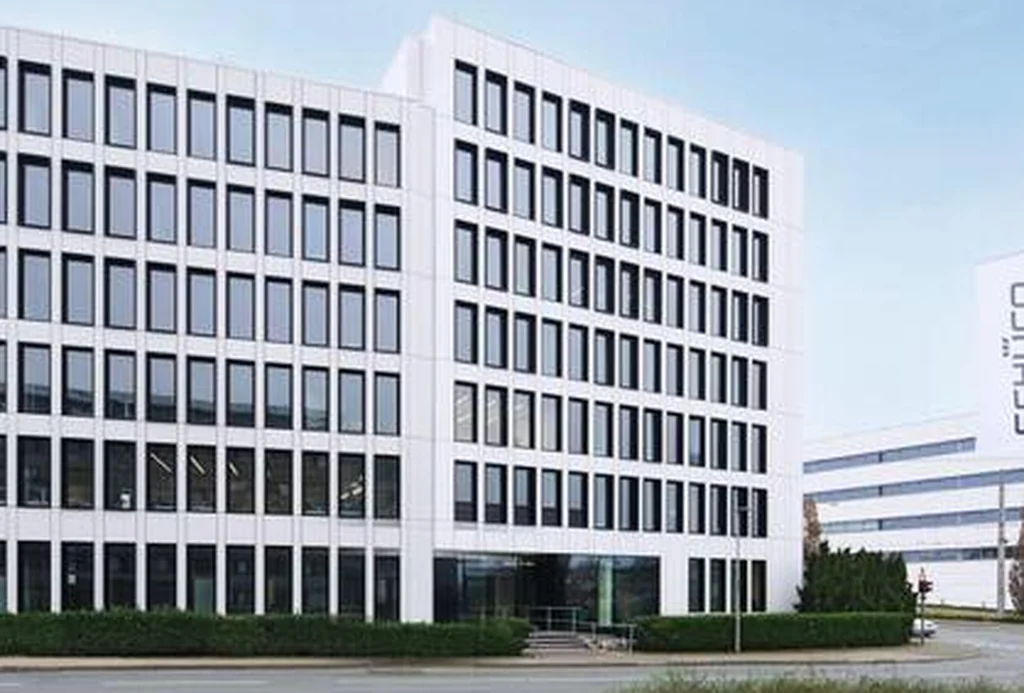

Overview
Schüco AF UDC 80 is an aluminium unitised façade platform of scalable, tested assemblies for prefabricated construction. A continuous 80 mm profile face width can be visually reduced to 65 mm with cover caps without changing the load-bearing structure, allowing units up to 3000 × 4000 mm and 1000 kg. Uf values reach 0.81 W/(m²K) including screw factor, and opaque infills can be flush or cantilevered.
Spotlight on:
Product highlights
Published Schüco system characteristics for the Façade System AF UDC 80:
Product highlights in detail
Configuration and planning
Framed-appearance product portfolio; horizontally offset unit arrangements and angled sash bar profiles; different expansion compensation options at horizontal butt joints.
System integration
Schüco AF UDC 80 CV concealed vent; a wide range of Schüco AWS windows and Schüco ADS doors up to AWS 114.SI as opening units in the load-bearing structure.
Key system data
- Aluminium: 80 mm
- Max Height: 4000 mm
- Max Weight: 1000 kg
- Shading
Values are published Schüco system data. Final thermal, acoustic and security performance depends on glazing, hardware, configuration and project specification.
01 — Planning benefit
Planning benefit
Aluminium unitised (element) façade - Aluminium Façade Unitized Dynamic Construction; prefabricated units with a framed appearance; horizontal butt joints; opaque unit areas in sheet metal, printed glass or natural stone, flush or cantilevered
Framed-appearance product portfolio
Horizontally offset unit arrangements and angled sash bar profiles
Different expansion compensation options at horizontal butt joints
Opaque infills flush or cantilevered
Visually reduced 65 mm sightline via cover caps
Project-business assemblies individually adapted to reduce planning and testing effort
02 — System integration
System integration
Schüco AF UDC 80 CV concealed vent
A wide range of Schüco AWS windows and Schüco ADS doors up to AWS 114.SI as opening units in the load-bearing structure
Concealed Schüco AB ZDS textile sun shading with profile-integrated guide tracks (dedicated 'AB ZDS in AF UDC 80' product)
03 — Gallery

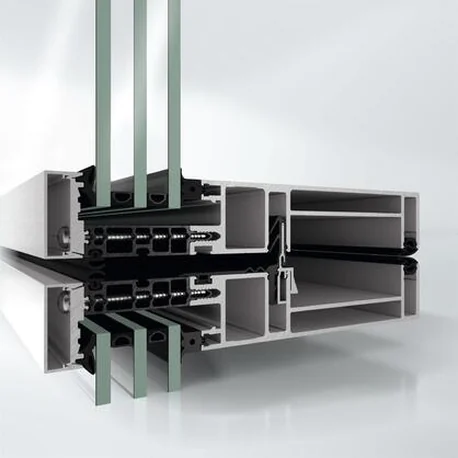

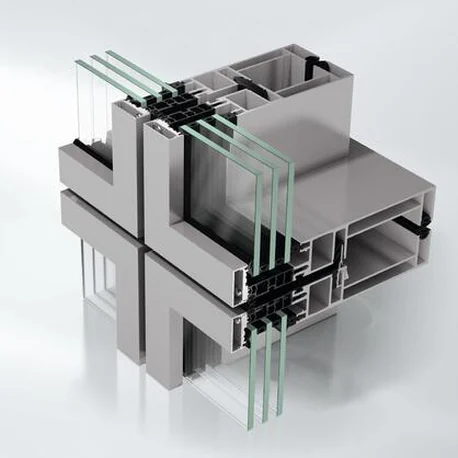

Gallery
04 — Awards
Awards
-
Cradle to Cradle Certified Silver
-
Cradle to Cradle Certified Bronze
05 — Technical information
Technical information
Figures are published system maxima and minima. “Not published” means Schüco publishes no figure for that property; project values depend on configuration, glazing build-up and installation, and are confirmed by KR at tender.
Dimensions and profile
| Face width (mm) | 80 continuous, visually reducible to 65 with cover caps |
|---|---|
| Max. unit size, W × H (mm) | 3000 × 4000 |
| Max. unit weight (kg) | 1000 |
| Glazing thickness (mm) | wide range of glass thicknesses supported; exact range not published |
Performance
| Thermal performance | Uf as low as 0.81 W/(m²K) including screw factor; a Schüco UK press release separately quotes a system U-value of 0.86 W/m²K |
|---|---|
| Sound reduction | Not published |
| Watertightness | Not published |
| Air permeability | meets the limits up to 1200 Pa, i.e. the highest class AE |
| Wind load resistance | Not published |
Security and function
| Burglar resistance | Not published |
|---|---|
| Automation | AF UDC 80 CV concealed projected top-hung or parallel-opening vents are manually operated |
| Further features | transparent profile-integrated spandrel safety barrier for floor-to-ceiling opening units |
06 — Documentation
Documentation
Access required Schüco publishes Façade System AF UDC 80 technical documentation behind a registered architect login. The files are not downloadable from this page.
KR holds current documentation as a Schüco fabrication and installation partner and will supply the relevant sheets for a nominated project — or arrange authorised access through Schüco's architect workplace.
07 — Specification texts
Specification texts
Specification summary for the Schüco Façade System AF UDC 80. The complete, tender-ready specification text is issued by KR for a nominated project.
- Face width (mm): 80 continuous, visually reducible to 65 with cover caps
- Max. unit size, W × H (mm): 3000 × 4000
- Max. unit weight (kg): 1000
- Thermal performance: Uf as low as 0.81 W/(m²K) including screw factor; a Schüco UK press release separately quotes a system U-value of 0.86 W/m²K
- Air permeability: meets the limits up to 1200 Pa, i.e. the highest class AE
- Automation: AF UDC 80 CV concealed projected top-hung or parallel-opening vents are manually operated
- Further features: transparent profile-integrated spandrel safety barrier for floor-to-ceiling opening units
08 — CAD data
CAD data
Access required Schüco releases Façade System AF UDC 80 CAD sections and BIM objects only to registered architects through its architect workplace. No CAD or BIM files are hosted on this page.
KR can issue the relevant sections and details for a nominated project, or help set up authorised Schüco access for your practice.
09 — Brochures
Brochures
Published Schüco literature covering the Façade System AF UDC 80. KR supplies current editions directly.
Schüco UK AF UDC 80 press information
Current edition supplied by KR on request.
