System and opening types
Aluminium outward-opening slimline casement window; punched openings and ribbon windows with a variety of opening functions and configurations.
Windows · Schüco aluminium system
Windows System AWS 80 SC
Overview
Schüco AWS 80 SC is a slimline-casement aluminium window developed specifically for the UK market. It is outward-opening, with a sleek flush external casement, 46 mm sightlines and a comprehensive profile range for punched openings and ribbon windows. The system is fully tested to PAS 24 and achieves U values as low as 1.2 W/m²K.
Availability and final specification to be confirmed with KR.
Bookmarks and comparisons are saved on this device. Open Windows & Doors to compare systems side by side.
Spotlight on:
Product highlights
Published Schüco system characteristics for the Windows System AWS 80 SC:
Product highlights in detail
Configuration and planning
Outward-opening casement; punched openings and ribbon windows; screw-port connections for mullions and transoms.
Key system data
- Burglary Resist: PAS 24
- Aluminium: 80 mm
- Double Glazing
- Triple Glazing
- Max Weight: 42 kg
- Face Width: 46 mm
01 — Planning benefit
Planning benefit
Aluminium outward-opening slimline casement window; punched openings and ribbon windows with a variety of opening functions and configurations
Outward-opening casement
Punched openings and ribbon windows
Screw-port connections for mullions and transoms
One-part connection glazing bead allowing internal glazing of all openings and double or triple glazed units
02 — Gallery

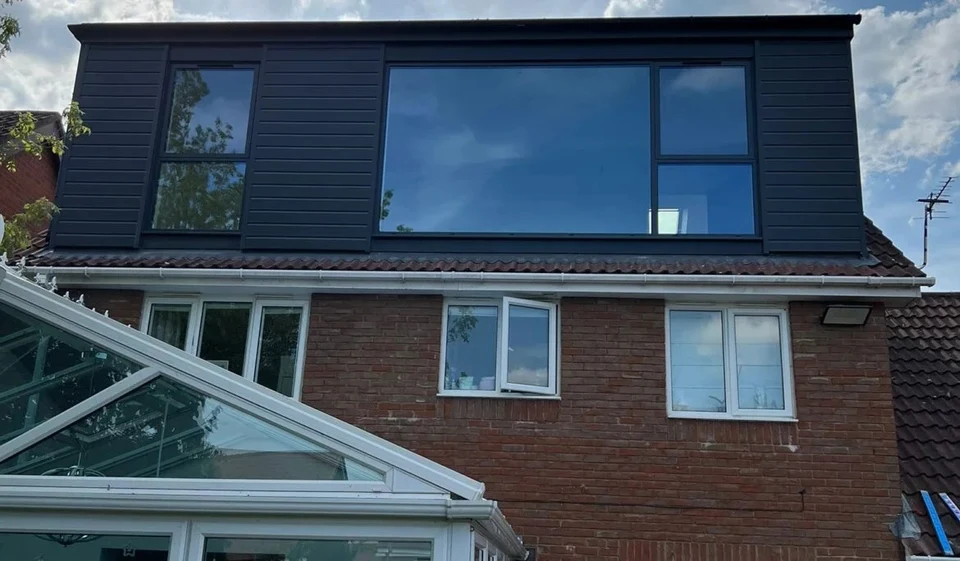

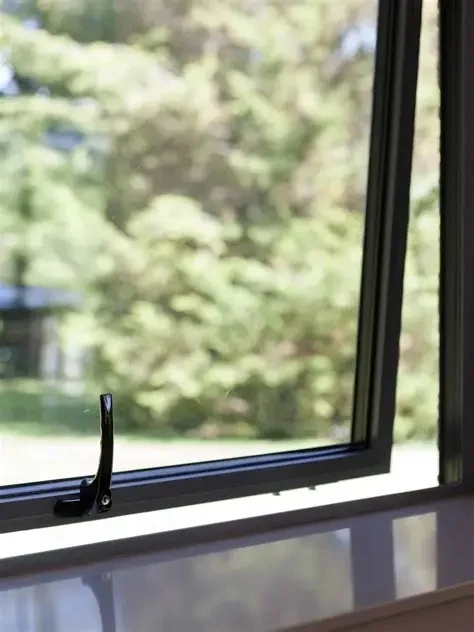

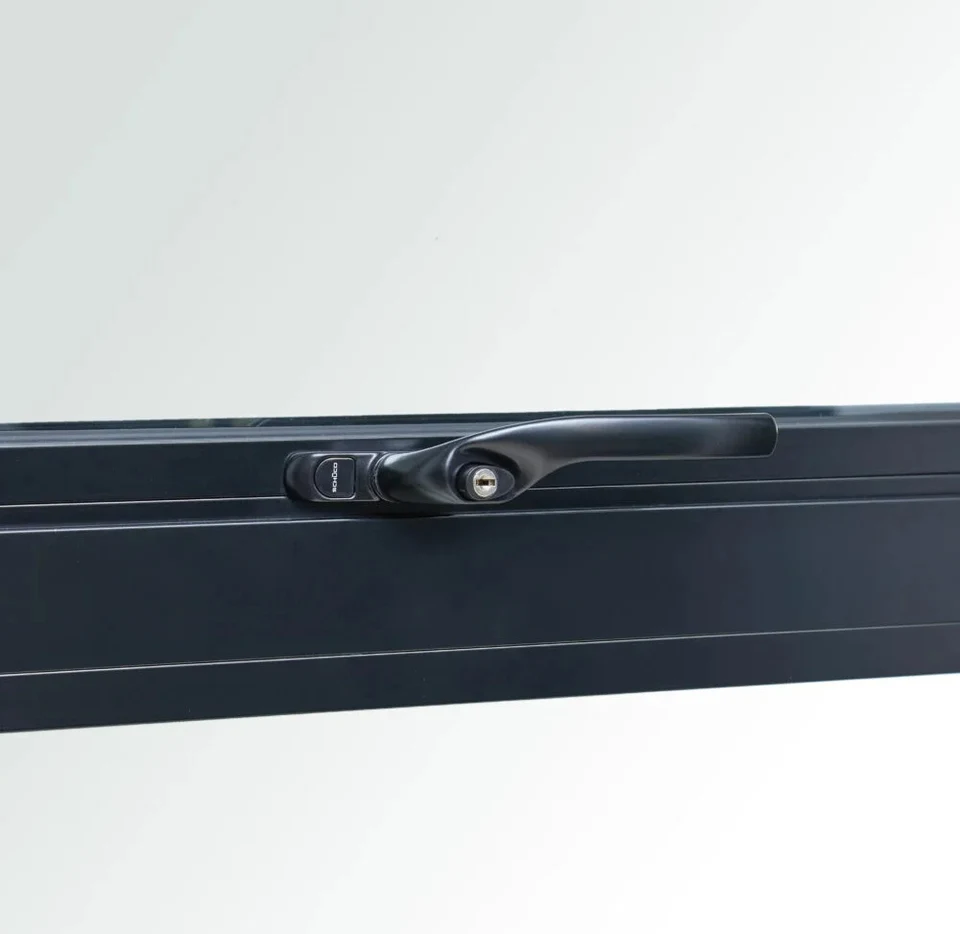

Gallery
03 — Technical information
Technical information
Figures are published system maxima and minima. “Not published” means Schüco publishes no figure for that property; project values depend on configuration, glazing build-up and installation, and are confirmed by KR at tender.
Dimensions and profile

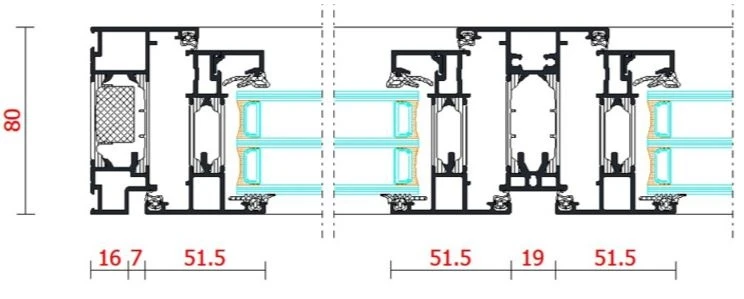

| Basic depth (mm) | 80 implied by the product name only; numeric confirmation not published |
|---|---|
| Max. vent size, W × H (mm) | Not published |
| Max. vent weight (kg) | 42 (opening units, with heavy-duty hinges) |
| Face width (mm) | 46 (sightlines) |
| Glazing thickness (mm) | Not published |
Performance
| Thermal performance | U values as low as 1.2 W/m²K |
|---|---|
| Sound reduction | Not published |
| Watertightness | Not published |
| Air permeability | Not published |
| Wind load resistance | Not published |
Security and function
| Burglar resistance | Fully tested to PAS 24 |
|---|
04 — Documentation
Documentation
Access required Schüco publishes Windows System AWS 80 SC technical documentation behind a registered architect login. The files are not downloadable from this page.
KR holds current documentation as a Schüco fabrication and installation partner and will supply the relevant sheets for a nominated project — or arrange authorised access through Schüco's architect workplace.
05 — Specification texts
Specification texts
Specification summary for the Schüco Windows System AWS 80 SC. The complete, tender-ready specification text is issued by KR for a nominated project.
- Max. vent weight (kg): 42 (opening units, with heavy-duty hinges)
- Face width (mm): 46 (sightlines)
- Thermal performance: U values as low as 1.2 W/m²K
- Burglar resistance: Fully tested to PAS 24
06 — CAD data
CAD data
Access required Schüco releases Windows System AWS 80 SC CAD sections and BIM objects only to registered architects through its architect workplace. No CAD or BIM files are hosted on this page.
KR can issue the relevant sections and details for a nominated project, or help set up authorised Schüco access for your practice.
07 — Brochures
Brochures
No public Schüco brochure is currently listed for the Windows System AWS 80 SC. Availability and final specification to be confirmed with KR.
Specifying Windows System AWS 80 SC?
KR fabricates, installs and distributes the Schüco range Australia wide. Talk to our team about configurations, thresholds, glazing build-ups and site conditions.
