System and opening types

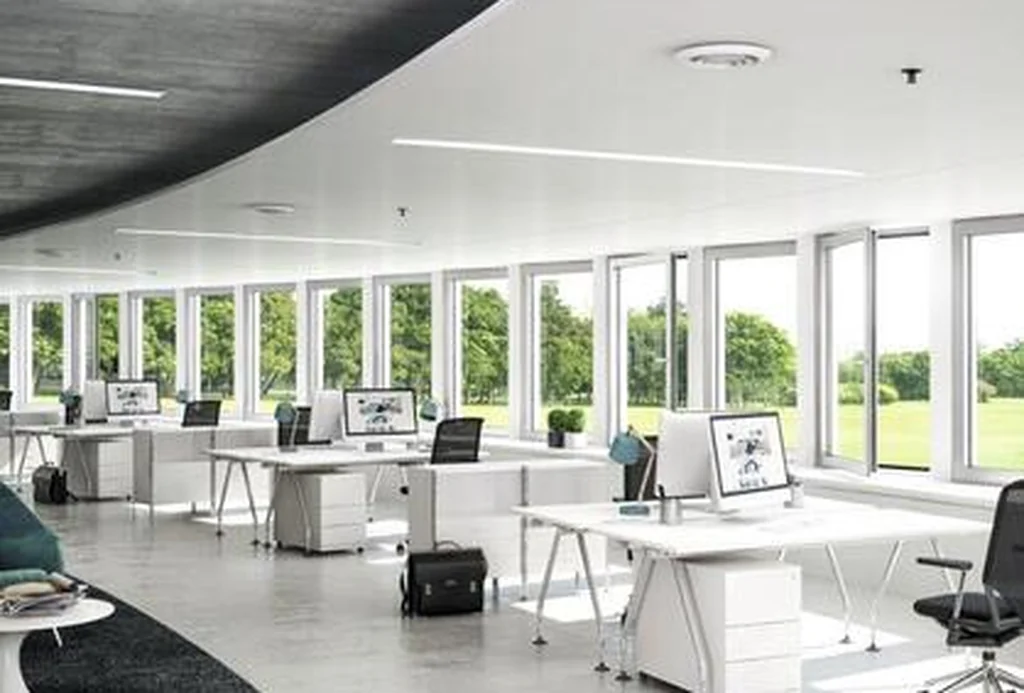

Aluminium window, AWS platform, 75 mm basic depth; punched opening, ribbon window, façade insert unit or combined with Schüco doors.
Windows · Schüco aluminium system
Window System AWS 75.SI+
Overview
This is one of KR's true bread-and-butter systems — our go-to when a project needs a high-performance aluminium platform for windows without compromising the architectural look. Schüco AWS 75.SI+ is a highly thermally insulated window system at the 75 mm basic depth, part of the wider Schüco AWS platform. It suits punched openings, ribbon windows and façade insert units, and pairs seamlessly with Schüco's hinged door systems so a whole elevation reads as one consistent, matched system. Opening types include tilt/slide vents, bottom-hung toplights and horizontal and vertical pivot vents, and the system is Cradle to Cradle Certified Silver.
Availability and final specification to be confirmed with KR.
Bookmarks and comparisons are saved on this device. Open Windows & Doors to compare systems side by side.
Spotlight on:
Product highlights
Published Schüco system characteristics for the Window System AWS 75.SI+:
Product highlights in detail
Configuration and planning
Punched opening, ribbon window, façade insert unit, combination with door systems; corner/structural/symmetrical/asymmetrical mullions; insert outer frame with adapter gasket.
System integration
AvanTec SimplySmart and TipTronic SimplySmart fittings; Schüco mullion/transom façades; Schüco door systems; SimplySmart OpenSecure; Integralmaster in AWS; CTB on AWS.
Key system data
- Burglary Resist: RC 3
- Acoustic Cont: Rw 48 dB
- Aluminium: 75 mm
- Double Glazing
- Triple Glazing: 65 mm
- Max Height: 2500 mm
- Max Weight: 160 kg
- Face Width: 91 mm
- Motorised
01 — Planning benefit
Planning benefit
Aluminium window, AWS platform, 75 mm basic depth; punched opening, ribbon window, façade insert unit or combined with Schüco doors; tilt/slide, bottom-hung toplights, horizontal and vertical pivot vents; outward-opening vent types available
Punched opening, ribbon window, façade insert unit, combination with door systems
Corner/structural/symmetrical/asymmetrical mullions
Insert outer frame with adapter gasket
Barrier-free patio and balcony doors
Integralmaster internal shading upgrade
AWS 75 BS.SI+ adds 'floating window' and concealed vents without visible glazing beads
02 — System integration
System integration
AvanTec SimplySmart and TipTronic SimplySmart fittings
Schüco mullion/transom façades
Schüco door systems
SimplySmart OpenSecure
Integralmaster in AWS
CTB on AWS
Schüco Perfect forward-mounted system
VentoFrame Asonic
03 — Gallery
Gallery
04 — Awards
Awards
-
Cradle to Cradle Certified Silver
-
Passive House Institute Certified Component
05 — Technical information
Technical information
Figures are published system maxima and minima. “Not published” means Schüco publishes no figure for that property; project values depend on configuration, glazing build-up and installation, and are confirmed by KR at tender.
Dimensions and profile
| Basic depth (mm) | 75 |
|---|---|
| Max. vent size, W × H (mm) | 1700 × 2500 (AWS 75.SI+); 1500 × 2200 (AWS 75 BS.SI); 1300 × 2500 barrier-free |
| Max. vent weight (kg) | 160 |
| Face width (mm) | 91 (AWS 75.SI+); from 66 visible (AWS 75 BS.SI) |
| Glazing thickness (mm) | 18–62 (AWS 75.SI barrier-free); up to 54 (AWS 75 BS.SI) |
Performance
| Thermal performance | Uf to 0.9 W/(m²K) (AWS 75.SI+); Uf from 0.92 (family sheet); Uw to 0.78 vent / 0.71 fixed (AWS 75 BS.SI) |
|---|---|
| Sound reduction | 48 |
| Watertightness | class 9A |
| Air permeability | class 4 |
| Wind load resistance | class C5/B5 |
Security and function
| Burglar resistance | up to RC3; AWS 75.SI+ optimized RC1N/RC2/RC2N/RC3 to DIN EN 1627; AWS 75 BS.SI to RC 2 |
|---|---|
| Threshold and accessibility | barrier-free zero-level threshold; RC 1N/RC 2N/RC 2 in that configuration |
| Automation | Schüco TipTronic SimplySmart motorised vent profiles |
| Further features | AWS 75.SI+ optimized passive house-certified from a 178 mm face width by PHI Darmstadt |
06 — Documentation
Documentation
Access required Schüco publishes Window System AWS 75.SI+ technical documentation behind a registered architect login. The files are not downloadable from this page.
KR holds current documentation as a Schüco fabrication and installation partner and will supply the relevant sheets for a nominated project — or arrange authorised access through Schüco's architect workplace.
07 — Specification texts
Specification texts
Specification summary for the Schüco Window System AWS 75.SI+. The complete, tender-ready specification text is issued by KR for a nominated project.
- Basic depth (mm): 75
- Max. vent size, W × H (mm): 1700 × 2500 (AWS 75.SI+); 1500 × 2200 (AWS 75 BS.SI); 1300 × 2500 barrier-free
- Max. vent weight (kg): 160
- Face width (mm): 91 (AWS 75.SI+); from 66 visible (AWS 75 BS.SI)
- Glazing thickness (mm): 18–62 (AWS 75.SI barrier-free); up to 54 (AWS 75 BS.SI)
- Thermal performance: Uf to 0.9 W/(m²K) (AWS 75.SI+); Uf from 0.92 (family sheet); Uw to 0.78 vent / 0.71 fixed (AWS 75 BS.SI)
- Sound reduction: 48
- Watertightness: class 9A
- Air permeability: class 4
- Wind load resistance: class C5/B5
- Burglar resistance: up to RC3; AWS 75.SI+ optimized RC1N/RC2/RC2N/RC3 to DIN EN 1627; AWS 75 BS.SI to RC 2
- Threshold and accessibility: barrier-free zero-level threshold; RC 1N/RC 2N/RC 2 in that configuration
08 — CAD data
CAD data
Access required Schüco releases Window System AWS 75.SI+ CAD sections and BIM objects only to registered architects through its architect workplace. No CAD or BIM files are hosted on this page.
KR can issue the relevant sections and details for a nominated project, or help set up authorised Schüco access for your practice.
09 — Brochures
Brochures
Published Schüco literature covering the Window System AWS 75.SI+. KR supplies current editions directly.
Schüco AWS 75 BS.SI data sheet
Current edition supplied by KR on request.
Schüco AWS 75 family data sheet (P3933)
Current edition supplied by KR on request.
Schüco AWS barrier-free data sheet (P4437)
Current edition supplied by KR on request.
Specifying Window System AWS 75.SI+?
KR fabricates, installs and distributes the Schüco range Australia wide. Talk to our team about configurations, thresholds, glazing build-ups and site conditions.
