Door System AD UP 75
Overview

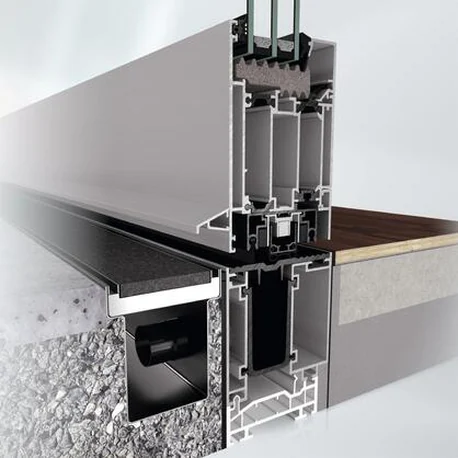

Schüco AD UP 75 is KR's bread-and-butter standard system for hinged doors — the 75 mm aluminium door system in the Schüco Aluminium Door Universal Platform, suitable for both commercial and residential projects. A triple-shell, five-chamber profile composition with a patented split hybrid insulating bar and a centre gasket as system standard delivers Uf values to 1.4 W/(m²K), watertightness class E750 and burglar resistance to RC 3, with zero-level thresholds. Fully concealed hinges and door closers keep the sightlines clean, a fully integrated drainage sill sheds water invisibly, and the system can even be motorised to open for you as you arrive home.
Bookmarks and comparisons are saved on this device. Open Windows & Doors to compare systems side by side.
Spotlight on:
Product highlights
Published Schüco system characteristics for the Door System AD UP 75:
Product highlights in detail
Configuration and planning
Single and double-leaf; barrel hinges, concealed door hinges or surface-mounted hinges; door leaf with optional leaf-enclosing infill on one or both sides.
System integration
Compatible, in common with the entire AD UP platform including sidelights and toplights, with the corresponding Schüco façades and Schüco windows.
Key system data
- Burglary Resist: RC 3
- Acoustic Cont: Rw 42 dB
- Aluminium: 75 mm
- Double Glazing
- Triple Glazing
- Max Height: 3000 mm
- Max Weight: 200 kg
- Automation
01 — Planning benefit
Planning benefit
Aluminium hinged door, Schüco AD UP (Aluminium Door Universal Platform), 75 mm basic depth; single and double-leaf; heavily used commercial door and design entrance door; sidelights and toplights
Single and double-leaf
Barrel hinges, concealed door hinges or surface-mounted hinges
Door leaf with optional leaf-enclosing infill on one or both sides
Modular gasket system scalable within the basic depth
Sidelights and toplights
02 — System integration
System integration
Compatible, in common with the entire AD UP platform including sidelights and toplights, with the corresponding Schüco façades and Schüco windows
Schüco DCS camera and light module and DCS access control
Schüco door communication and access control systems
03 — Gallery
Gallery
04 — Awards
Awards
-
Cradle to Cradle Certified Silver
-
bfb Produkt des Jahres 2024
05 — Technical information
Technical information
Figures are published system maxima and minima. “Not published” means Schüco publishes no figure for that property; project values depend on configuration, glazing build-up and installation, and are confirmed by KR at tender.
Dimensions and profile
| Basic depth (mm) | 75 |
|---|---|
| Max. leaf size, W × H (mm) | 1400 × 3000 (width x height) |
| Max. leaf weight (kg) | 200 |
| Profile composition | triple-shell, 5-chamber |
| Face width (mm) | Not published |
| Infill thickness (mm) | Not published |
Performance
| Thermal performance | AD UP 75: Uf to 1.4 W/(m²K) per DIN EN ISO 10077–2; AD UP 75 BL: Uf 1.7 W/(m²K) |
|---|---|
| Sound reduction | 42 |
| Watertightness | AD UP 75: class E750 (DIN EN 12208); AD UP 75 BL: 7A |
| Air permeability | AD UP 75: class 4 (DIN EN 12207); AD UP 75 BL: class 3 |
| Wind load resistance | AD UP 75: C3/B3 (DIN EN 12210); AD UP 75 BL: C2/B2 |
Security and function
| Burglar resistance | up to RC 3 (WK3) per DIN V ENV 1627 / DIN EN 1627 for both AD UP 75 and AD UP 75 BL; range of panic locks |
|---|---|
| Threshold and accessibility | barrier-free design to DIN 18040; barrier-free zero-level threshold with automatic door seal; continuous threshold; adjustable sill; minimal operating forces up to class 3 for single and double-leaf doors |
| Automation | combinable with the Schüco Door Control System (DCS); cable groove as system standard; operation manual or automated |
| Further features | mechanical durability tested to 1 million cycles; barrel hinge for large leaf heights; concealed hinges with door communication and access control |
06 — Documentation
Documentation
Access required Schüco publishes Door System AD UP 75 technical documentation behind a registered architect login. The files are not downloadable from this page.
KR holds current documentation as a Schüco fabrication and installation partner and will supply the relevant sheets for a nominated project — or arrange authorised access through Schüco's architect workplace.
07 — Specification texts
Specification texts
Specification summary for the Schüco Door System AD UP 75. The complete, tender-ready specification text is issued by KR for a nominated project.
- Basic depth (mm): 75
- Max. leaf size, W × H (mm): 1400 × 3000 (width x height)
- Max. leaf weight (kg): 200
- Profile composition: triple-shell, 5-chamber
- Thermal performance: AD UP 75: Uf to 1.4 W/(m²K) per DIN EN ISO 10077–2; AD UP 75 BL: Uf 1.7 W/(m²K)
- Sound reduction: 42
- Watertightness: AD UP 75: class E750 (DIN EN 12208); AD UP 75 BL: 7A
- Air permeability: AD UP 75: class 4 (DIN EN 12207); AD UP 75 BL: class 3
- Wind load resistance: AD UP 75: C3/B3 (DIN EN 12210); AD UP 75 BL: C2/B2
- Burglar resistance: up to RC 3 (WK3) per DIN V ENV 1627 / DIN EN 1627 for both AD UP 75 and AD UP 75 BL; range of panic locks
- Threshold and accessibility: barrier-free design to DIN 18040; barrier-free zero-level threshold with automatic door seal; continuous threshold; adjustable sill; minimal operating forces up to class 3 for single and double-leaf doors
- Automation: combinable with the Schüco Door Control System (DCS); cable groove as system standard; operation manual or automated
08 — CAD data
CAD data
Access required Schüco releases Door System AD UP 75 CAD sections and BIM objects only to registered architects through its architect workplace. No CAD or BIM files are hosted on this page.
KR can issue the relevant sections and details for a nominated project, or help set up authorised Schüco access for your practice.
09 — Brochures
Brochures
Published Schüco literature covering the Door System AD UP 75. KR supplies current editions directly.
Schüco AD UP 75 / AD UP 75 BL brochure (P4494)
Current edition supplied by KR on request.
Schüco AD UP security brochure 'Unique style, secure living'
Current edition supplied by KR on request.
Schüco door-system brochure
Current edition supplied by KR on request.
